FLUXPAD Features

  • Three Analog Hall Effect Switches

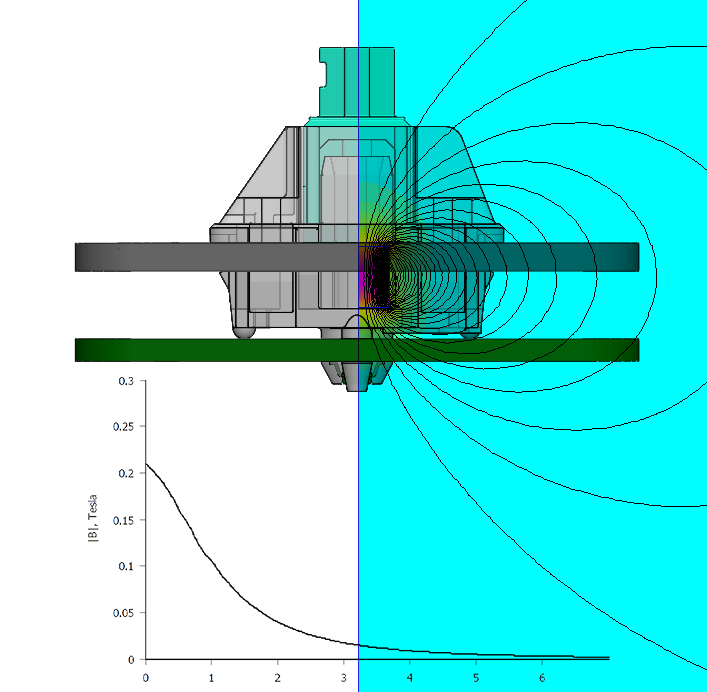

    The FLUXPAD comes with three analog hall effect switches for both index/middle and index/ring finger playstyles. Precision hall effect sensors underneath each switch sense the position of the key down to <0.05mm resolution (half the thickness of a piece of paper) over it's full 4mm of travel.

  • Fully Adjustable Rapid Trigger

    The FLUXPAD runs continuous rapid trigger algorithm on the three analog switches. The rapid trigger press/release sensitivity, upper/lower deadzones, and debounce filter settings are fully adjustable.

  • RGB LED Lighting

    RGB accent lighting allows you to customize the color scheme of the FLUXPAD V2 to match your desktop setup.

    Per-key white LED lighting gives you instant feedback on key actuation and rapid-trigger functionality.

  • Plus Two Regular Switches and a Knob for Convenience

    Two regular linear switches as well as an encoder knob are included on the FLUXPAD V2 for convenience. Bind them to commonly used keys such as retry, smoke, and volume up/down.
Shop Now

Full Customization through the FLUXAPP

Customize your keybinds, lighting settings, and rapid trigger settings in the FLUXAPP downloadable destop application. The FLUXPAD is plug and play so once you're done tweaking your settings, you can close FLUXAPP and run without bloatware.

Get the FLUXAPP Desktop Application

Technical Specs

Analog Switches

  • Switch Type: Gateron KS-20
  • Resolution: 0.05 mm
  • Range: 4mm (full travel)
  • Lifetime: 100 million presses

Digital Switches

  • Switch Type: Gateron Red
  • Lifetime: 50 million presses

Encoder Knob

  • 24 Pulses per revolution

Overall

  • Polling Rate: 1000 Hz
  • MCU: RP2040
  • Connector: USB Type-C
  • Case: Anodized Aluminum and Laser Cut Acrylic
  • Knob: Anodized Aluminum
  • Bottom Pad: Anti-Slip Silicone
  • Weight: 90g
  • Dimensions (WxLxH): 70x68x26mm
  • Fully Open Source: Github
